Setup for Robot Framework Automation

World changes constantly..
We change each day..
Once U find itself U have to begin again.

Today we are changing and learning Robot Framework and thought of sharing the same with others co-learners, please add your expertise as comments to this post. We have already shared our posts on established automation tools like UFT and Selenium.

Do follow us on  Fb,G+,Twitter, it encourages us to learn and share more.

Lets start with the installation of Robot Framework(RF), followed with our first test case with RF.

Prerequisites :-
1.Python:- This is the language on which the architecture of RF is based on.Most updated version of RF(2.9), supports Python-2.7, still contributing team is working on the support for Python -3.

Download Link:- Python  – Click on Downloads Menu – Download the latest version of python 2.7.*

Note:-

  • On most UNIX-like systems such as Linux and OS X you have Python installed by default
  • Latest Python Windows installers allow setting PATH as part of the installation. This is disabled by default, but Add python.exe to Path can be enabled on the Customize Python screen.
  • Python Installation
  • Now if we check (Control PanelSystem and SecuritySystemAdvance system settingsEnvironment VariablesSystem variables path) we can see the value added in the starting itself C:Python27;C:Python27Scripts;
  • Where our Installation path  = C:Python27 and Python scripts(where our Robot framework would be installed)= C:Python27Scripts
  • Enviornment variables for python
  • We haven’t discussed about installation of Jython and IronPython, these are interpreters we need incase we are coding in Java and .net technologies.


How to check python is installed on system?
Easiest approach is open the command prompt and execute the command “python –version”

python version using cmd prompt


2.Package Manger:-We can use any package manager like pip, easy_intstall for installing robot-framework.We would be using pip as it is coming bundled with latest version of python (starting 2.7.9) , else we need to install pip first and then utilize it.
So don’t worry about this now.

Installing Robot Framework(RF):-
Using pip command:-
# Install the latest version
pip install robotframework
Install RobotFramework
It would take fractions of seconds to install the setup.The above command would install only the latest stable release in case we want a particular version like old or beta release we can use it like:-

# Install 2.9 beta 1
pip install robotframework==2.9b1

#For upgrade we can use the command
pip install –upgrade robotframework

Using Windows installer:-
Installers are available on PyPI, select the one as per the OS(32 or 64 bit)
1.Extract the .tar file using (say 7-zip)
2.Open the command window inthe installer package and type “setup.py install

Installing Robot Framework
Note:-We can install RF by using “Source from GitHub”, “Using JAR in Maven Central” or “Manual” approach but we are not discussing this as above techniques are frequently used.

How to verify the installation of Robot Framework?
To verify, we need to use the Runner script, based on the interpreter used. Meaning a technique to trigger RF based on each type of interpreter.

In our example we have used Python interpreter.
Simply type the command pybot –version in the command prompt and we are done.

Checking version of Robot Framework
Note:- Each type of interpreter have their own Runner scripts:-

Interpreters for Robot Framework

Where we can locate the Robot Framework code?

All the robot framework code after installation can be found inside C:Python27Libsite-packagesrobot


How to install “Selenium2Library”?

We need this library to work with web applications.

Execute the command pip install robotframework-selenium2library and we are done with the installation.

Installing SeleniumLibrary2



How to verify the installation of Selenium2Library:-
Open cmd prompt type python
type import Selenium2Library
if we are able to see >> symbol means we are succsessfull.

Check installation of Selenium2Library



How to check the Selenium Keywords that we can use:-
We can utilize the online resource for Selenium Library.
Further we can play with python code of these keywords.
Path of Selenium Keywords on local system relative to Python installation = Python27Libsite-packagesSelenium2Librarykeywords
Open any of the .py file and check the code.

RIDE:-

We can use this IDE for writing our robot framework.As a beginner it is easy to grasp this IDE, further we can implement other IDE’s like pyCharm also.

Preconditons:- We need python, robotframework and wxPython already installed to launch RIDE. Thus we still need to install wxPython as we already done with first 2 components.

wxPython:- RIDE’s GUI is implemented using wxPython toolkit.

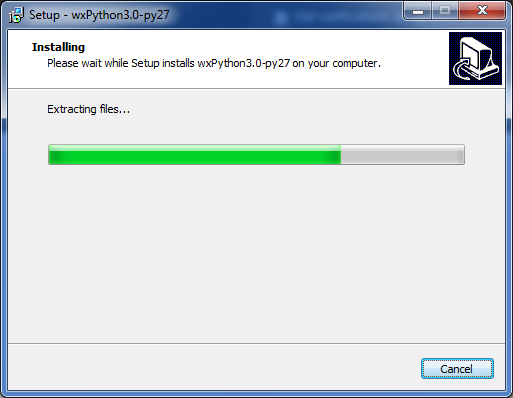

Install wxPython:-
Select the required .exe as per the system requirement.

Download link:- wxPython

installing wxPython

For Unix OS: – sudo apt install python-wxgtk2.8

 Installing RIDE:-

We would install it using the following pip command.

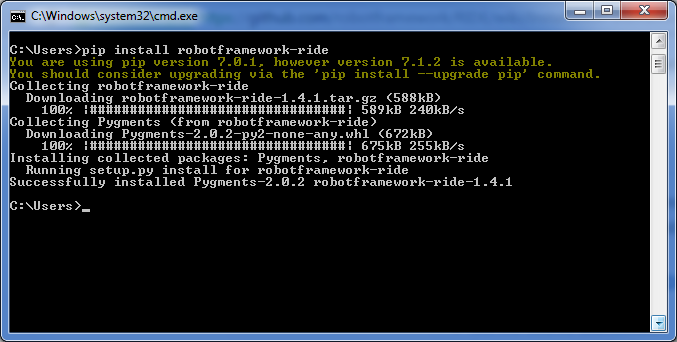

pip install robotframework-ride

Pip command to install RIDE


Note:-


  • Using the pip command we are installing the latest stable release.Incase we want to check the beta/alpha release we can follow the RIDE github page.
  • To create the desktop shortcut on windows we need to use the .exe of the installer, that we can get again at the release link.



Launching RIDE :- type the command ride.py in command prompt and we are done


RIDE IDE

Writing our first test case in RF?
